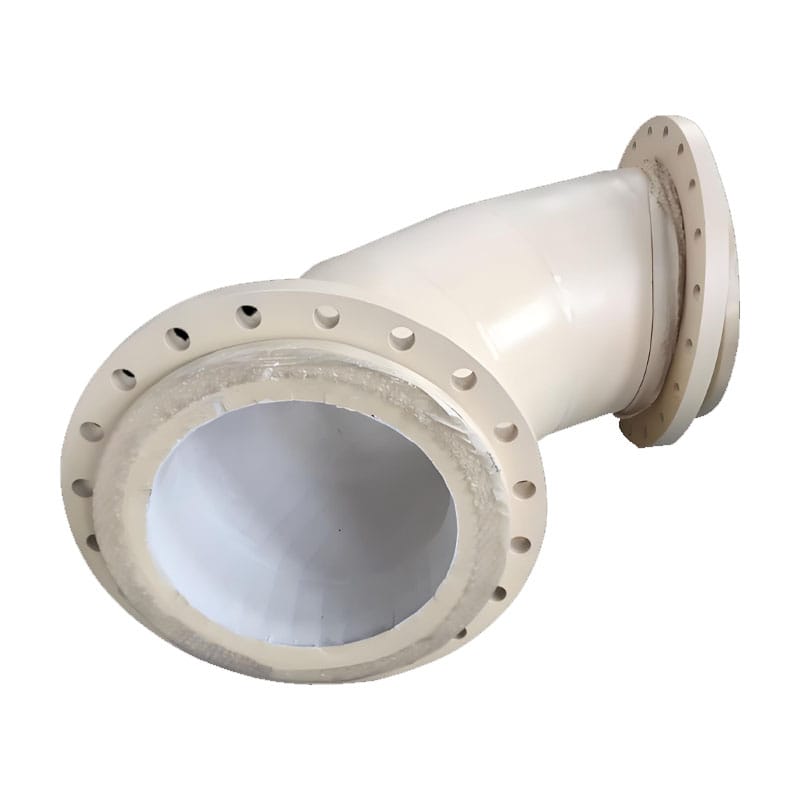

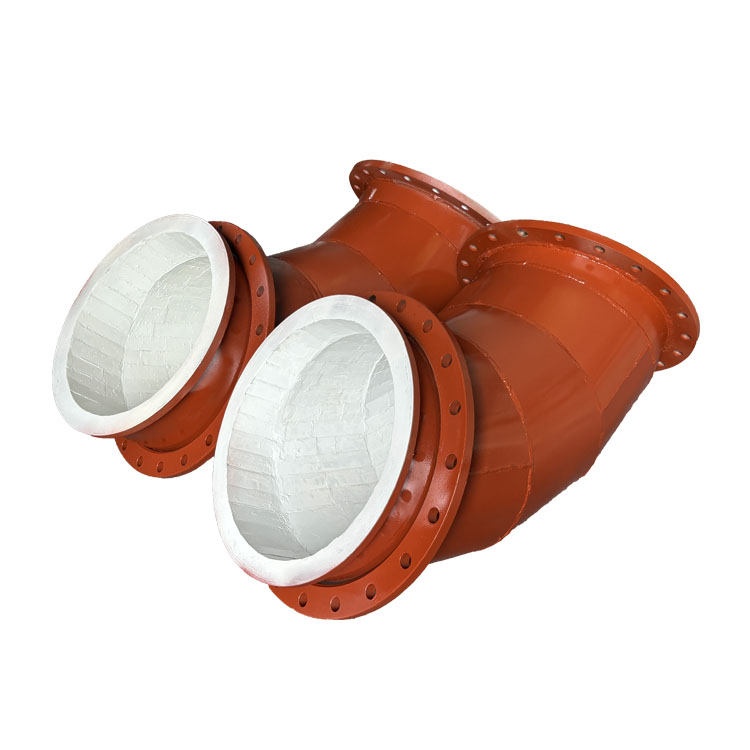

Ceramic Patch Lined Elbow: Unbeatable Wear Resistance
Our Ceramic Patch Lined Elbow delivers extreme durability. It features a corundum ceramic liner. This material is alpha-Alumina (α-Al₂O₃). Its Mohs hardness reaches 9.0. This offers exceptional wear resistance. The product outlasts standard steel pipes. It provides over 20 times more abrasion resistance、handles high-speed fluid flows perfectly and also withstands solid particle erosion. This ensures a very long service .

Excellent Performance Across Wide Temperatures
This elbow operates reliably in many conditions. It performs from -50°C to 700°C. It maintains stability under high heat. This makes it ideal for hot environments. Power plant systems benefit greatly. Fly ash conveying uses it successfully. It ensures consistent performance in thermal cycles.

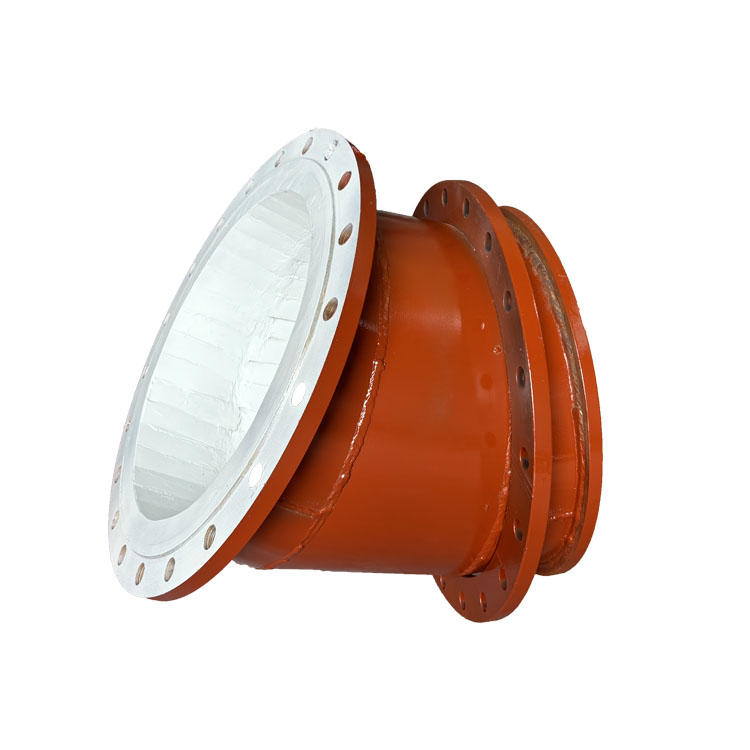

Superior Composite Structure for Strength
We build this elbow with three layers. The inner layer is solid corundum ceramic. A middle transition layer bonds everything. An outer steel shell provides strong support. This design combines the best properties. It uses ceramic for extreme hardness. It uses metal for high mechanical strength. The product is also much lighter. It weighs 20% to 50% less than old-style pipes.
Smooth Interior Lowers Fluid Friction
The pipe’s inner surface is very smooth. This design minimizes flow resistance. The friction coefficient is just 0.0193. This smoothness reduces pumping power needs. It cuts down energy consumption significantly. It leads to major operational cost savings.

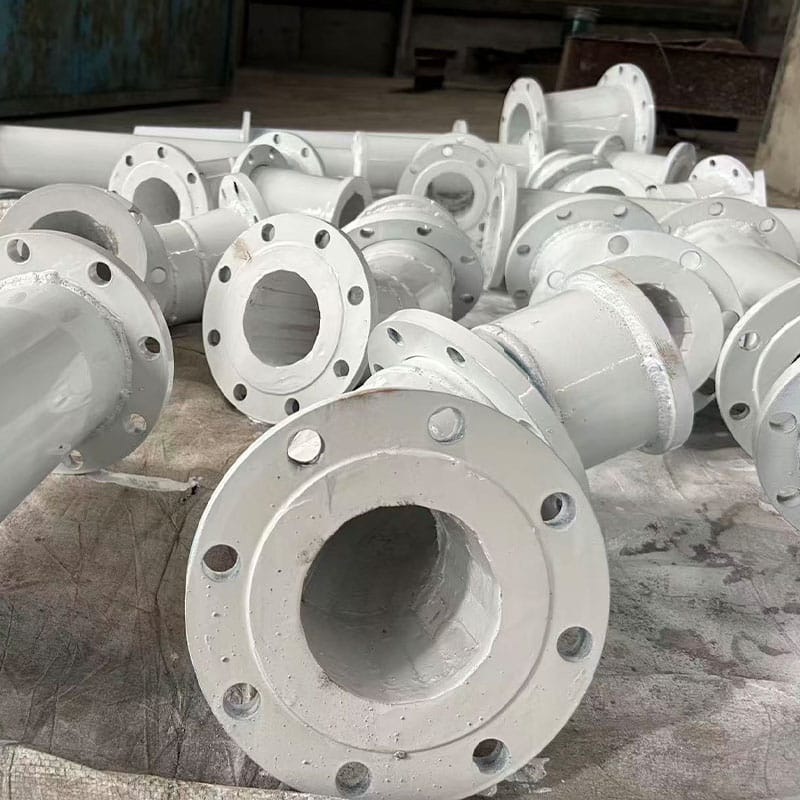

Easy and Economical Installation Process
Installing our elbow is simple and fast. You can connect it by welding. Flanges offer another easy option. Quick-connect couplings also work well. This flexibility saves installation time. It also reduces labor costs. Total project expenses drop by about 30%.

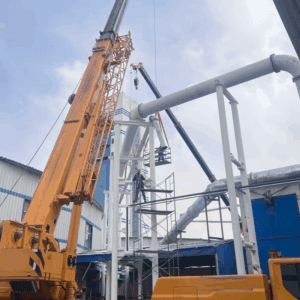

Ideal for Tough Industrial Applications
Use this elbow in many demanding areas. Mining slurry transport needs its durability. Power plant pneumatic ash handling relies on it. Cement production uses it for powder transfer. Steel mill abrasive dust removal applies it. Any heavy-wear process benefits from this product.
Why Select Our Ceramic Lined Elbow
Choose our product for superior quality. We guarantee top-grade materials. Our manufacturing process is precise. We offer reliable product performance. Our team provides expert technical support. We ensure fast delivery times. Our solutions give you great value.
| Ceramic patch wear -resistant pipe parameters | ||||
|---|---|---|---|---|
| Specification | Outer Diameter | Inside Diameter | Wall Thickness | Steel Pipe Thick |
| DN80 | 112-132 | 80 | 10~14 | 6~12 |
| DN100 | 132~152 | 100 | 10~14 | 6~12 |
| DN125 | 157~177 | 125 | 10~14 | 6~12 |
| DN150 | 182~202 | 150 | 10~14 | 6~12 |
| DN200 | 236~264 | 200 | 10~20 | 6~12 |
| DN250 | 286~314 | 250 | 10~20 | 6~12 |
| DN300 | 336~364 | 300 | 10~20 | 6~12 |
| DN350 | 386~414 | 350 | 10~20 | 6~12 |
| DN400 | 436-464 | 400 | 10~20 | 6~12 |
| DN450 | 486~514 | 450 | 10~20 | 6~12 |
| DN500 | 542~584 | 500 | 15~30 | 6~12 |
| DN600 | 642~684 | 600 | 15~30 | 6~12 |
| DN700 | 742~784 | 700 | 15=30 | 6~12 |
| DN800 | 842~884 | 800 | 15-30 | 6~12 |
| DN900 | 942~984 | 900 | 15-30 | 6~12 |
| DN1000 | 1046~1088 | 1000 | 15-30 | 8~14 |
| DN1200 | 1246~1288 | 1200 | 15-30 | 8~14 |
| DN1400 | 1446~1488 | 1400 | 15~30 | 8~14 |
| DN1600 | 1646~1688 | 1600 | 15-30 | 8~14 |
| DN1800 | 1846~1888 | 1800 | 15-30 | 8~14 |
| DN2000 | 2046~2088 | 2000 | 15~30 | 8~14 |
Advanced Technology for Maximum Durability
We use special ceramic formulation. Our lining resists impact and abrasion. The bonding process is unique and strong. This prevents lining detachment. It ensures long-term integrity.
Direct Cost Savings for Your Business
Our elbow reduces your operating expenses. Its long life lowers replacement costs. Energy efficiency cuts power bills. Less maintenance means more savings. You get a high return on investment.
Global Standards and Reliable Service
Our products meet international quality norms. We serve clients worldwide. Our customer service team is responsive. We help you select the right product. We ensure your complete satisfaction.
Order Your Ceramic Lined Elbow Today
Contact us for a quick quote. Our experts will assist you. We provide fast shipping. Improve your system’s performance now. Choose durability and efficiency.
